ABB Robots
ABB is a leading supplier of industrial robots and robot software, equipment and complete application solutions. Neptune offers a unique solution to following milling and 3D Laser Cutting for metal and non-metal industrial applications.

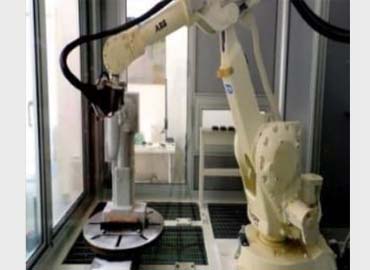

1. MILLING APPLICATION
ABB milling robots are able to cut away material from a work piece to make specific shapes in sheet metal. By using ABB milling robotics in your workplace, you are introducing a new level of accuracy and precision to your milling application. One model, the ABB IRB 6660, is designed for versatile machining and milling applications.

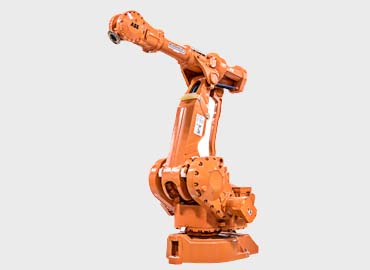

2. Laser Cutting
Rapid manoeuvrability makes the IRB 4400 S4CPlus perfectly matched for applications where speed and flexibility are important. The compact design and protected versions enables use in situation where conventional robots cannot work, such as foundry and spraying applications. The foundry plus versions are ideal for harsh environments because they are IP67 protected and can be washed with high pressure steam.
Reliability and economy
The robust, rigid construction means long intervals between routine maintenance. Well-balanced steel arms with double bearing joints, a torque-strut on axis 2 and use of maintenance-free gearboxes and cabling also contribute to the very high levels of reliability. The drive train is optimised to give high torque with the lowest power consumption for economic operation.
Extensive communication for easy integration
The extensive communication capabilities include serial links, network interfaces, PLC, remote I/O and field bus interfaces. This makes for easy integration in small manufacturing stations as well as large scale factory automation systems.
| Axis | 6 |
| Payload | 45.00kg |
| H-Reach | 1960.00mm |
| Repeatability: | ±0.0700mm |
| Robot Mass: | 980.00kg |
| Structure: | Articulated |
| Mounting: | Floor |
